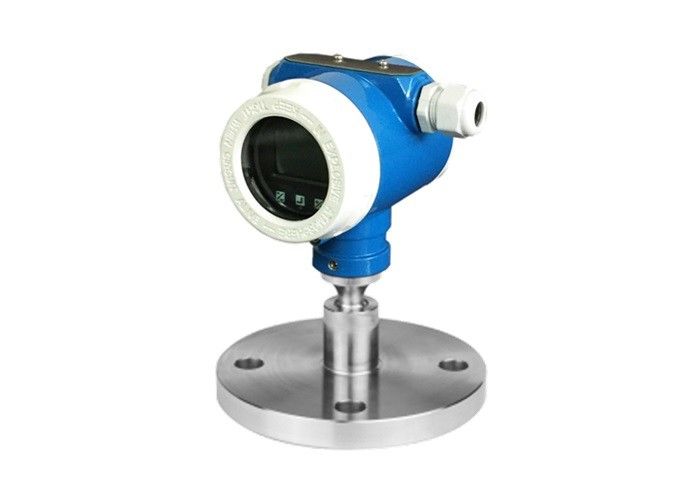

SS304 Flanged Smart Pressure Transmitter For Level Measurement 4~20mA Hart Output

SS304 Flanged Smart Pressure Transmitter For Level Measurement 4~20mA Hart Output

WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series. It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.

WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal. Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.

WNK51 pressure transmitter with flange can be used for pressure and level measurement in open tank, well and other vehicles. Its supports 4~20mA, 4~20mA+HART output and its max range is 700bar. As with robust design and good quality elements, it is suitable for various harsh industrial applications like petrol, power plant, petrochemical, oil&gas, cement, wastes treatment station and etc.

Quick Information:

• Pressure range is 700bar;
• Output: 4~20mA, 4~20ma+Hart
• High accuracy up to 0.05%FS;
• Excellent long-term drift ≤±0.15%URL for 5 years;
• Flange material is SS304 or SS316, as per requirements of application;
• Ingress protection level IP66/67;
• Module design: Changeable electronic module;
• High Temperature Resistance: Highest temperature up to 280℃ with diaphragm sealing;
• Flange connection design is suitable for food and medical sanitary application;
• Explosion Proof: Exia II CT4, Exd II CT6;
• CE, ISO9001:2015

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
