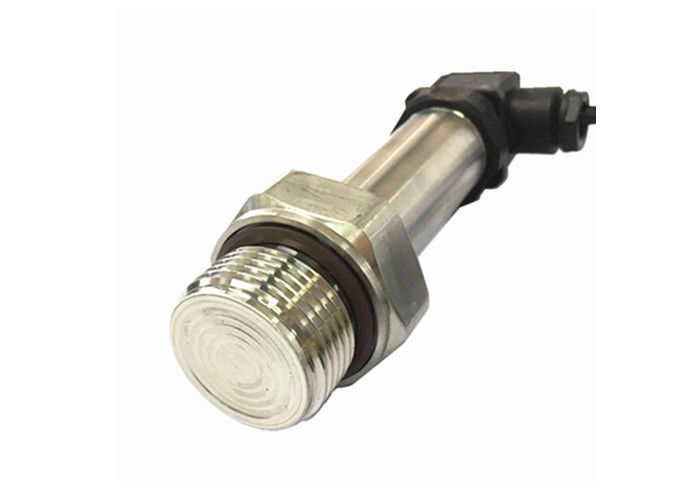

High Temperature Pressure Sensor 120 Deg 4~20mA With Flush Diaphragm

High Temperature 120 Deg C Compact Pressure Sensor 4~20mA With Flush Diaphragm

WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.

High quality sensors, soldering packaging technology and assembly processes ensure the high quality and performance of the product. This product adopts a flush membrane structure and a variety of lead ways to meet the needs of customers, applicable to food and pharmaceutical, beverage processing and biological products and other industries.

Features:

• High performance piezoresistive silicon pressure sensor
• 4~20mA, 0~5V, 1~5V, 0~10V and other analog outputs
• Flush Diaphragm connection
• Wetting diaphragm is SS316L
• Pressure type: GP, AP, NP
• Stainless steel 304 housing
• Various electrical connectors including DIN43650 (Hirschman), M12, direct cable outlet and others
• Suitable for air, steam, water and fuel oil application
• Intrinsic safety and explosion-proof certificates
• OEM, ODM & customization
• CE, ISO9001(2015) certificate

Application fields:

1.Food hygiene industry；

2.Paper industry；

3.Sewage level measurement；

4.Beverage tank level measurement；

5.Pipeline level measurement；

6.Pharmaceutical and biological products processing

Detailed Technical Info:

Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
