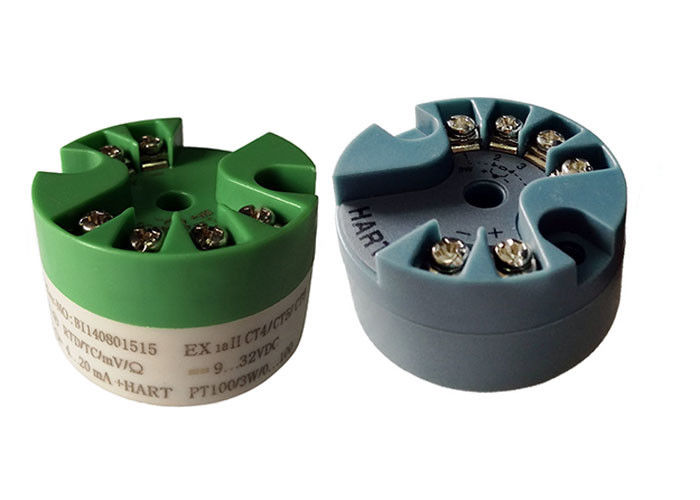

Pt1000 Head Mounted Temperature Transmitter Thermocouple K 4-20ma Output

Thermocouple K 4-20ma Output Pt100 Head Mounted Temperature Transmitter

Description

Analog temperature transmitter specially designs for PT100. It inputs various RTD signal and converts this signal into 4-20mA standard current signal after linear processing. It has configurable measuring ranges and large ambient temperature range.

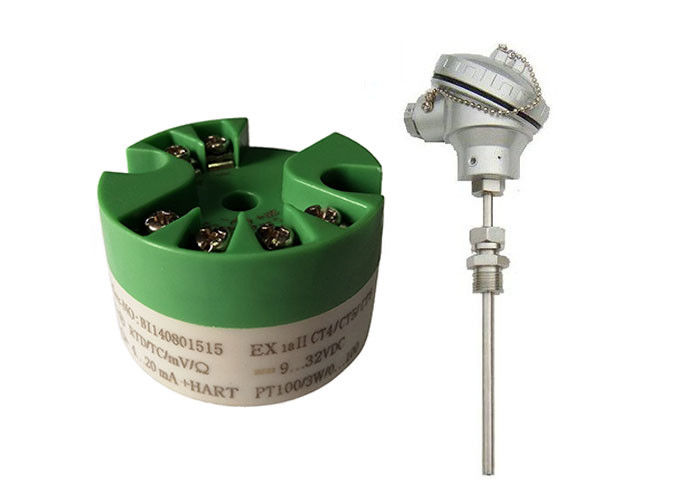

It is installed into the top of the temperature transmitter. One side connected to the temperature probe and the other side connected to the circuitry. Compact and inexpensive one is available any time.

Features

• Two-wire work mode
• Pt100,Cu50,Cu100, Pt1000 Four thermal resistance full measurement range
• K, S, R, B, N, E, J, T Eight thermocouples full range measurement
• Cold end automatic compensation
• Thermal resistance three-wire measurement automatically eliminating the lead resistance
• Thermal resistance/ Thermocouple disconnection fault prompts and output processing;
• Independent setting for temperature transmission output range
• High accuracy, low temperature drift

Datasheet
