สถานที่กำเนิด:
เหอเฝย, จีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
CE, SGS
หมายเลขรุ่น:
WNK55
วีดีโอ
วีดีโอ
วีดีโอ

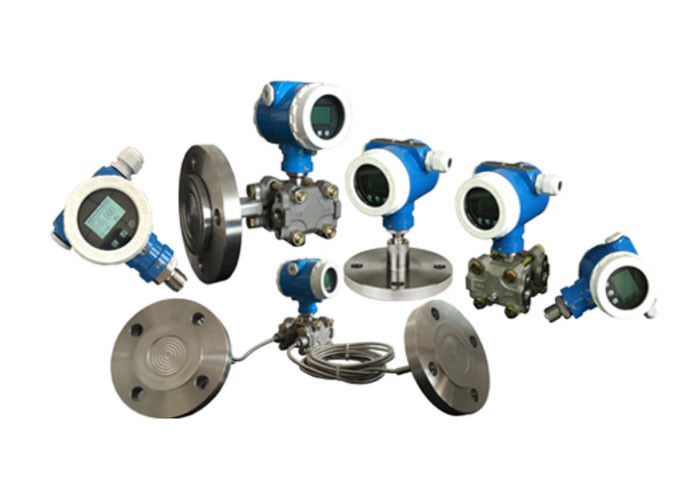

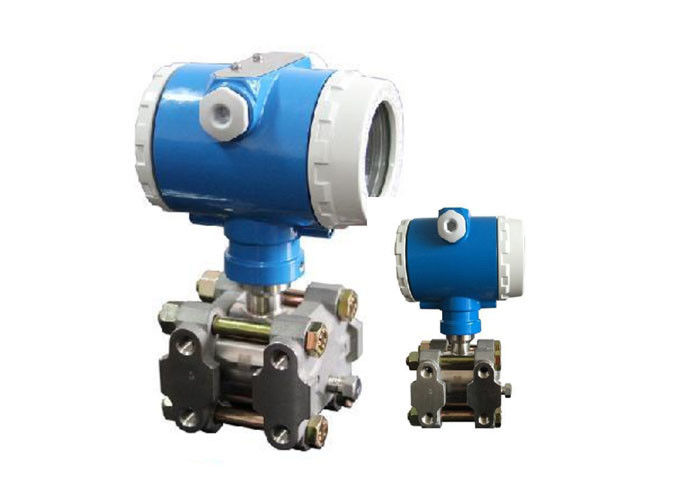

4-20ma Gauge Or Absolute Industrial Smart Differential Pressure Transmitter With Adjustable Display
WNK5 series pressure transmitters are suitable for:
Gauge, absolute and differential pressure measurement in gases, steam or liquids in all areas
of process control field.
Level, volume or mass measurement in liquids.
Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and
mass flow)
High process temperatures up to 280℃ with diaphragm seals.
High pressure up to 700bar.
Features
1. reference accuracy up to 0.2%.
2. Long-term stability
3. Intrinsically safe and flameproof explosion proof
4. Range down ratio 100:1
5. With Modbus communication protocol
Applicable Field
1. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Level, volume or mass measurement in liquids.
3. Working with detecting element, measure the flow of gases, steam and liquid flow.( volume and mass flow)
4. High pressure up to 700bar.
Specifications
| Measured media | liquid, gas and steam |
| Pressure range | -100KPa~70MPa |
| Output signals | 4~20mA, Modbus-RS485, 1-5V |
| Accuracy | 0.2% |
| Stability | ±0.3% of URL for 5 years |
| Temperature drift | ±0.05% of URL/10ºC |
| Display | LCD, or pointer optional |
| Housing material | Aluminum14 |
| Process connection | M20×1.5;G1/2;1/2NPT; flush diaphragm |
| Protection class | IP66/67 |
| Power Supply | 10.5-55V DC 10.5-30V DC |
| Ambient temperature | -40 to 85ºC,-40 to 80ºCfor LCD header |
| Storage temperature | -45 to 85ºC,-40 to 80ºC for LCD header ; |
|
Dimension |
with display: 84*1110*52 (mm) |
| Net Weight | 1.1kg (without bracket or process connection) |
Installation diagram
Ordering sheet
