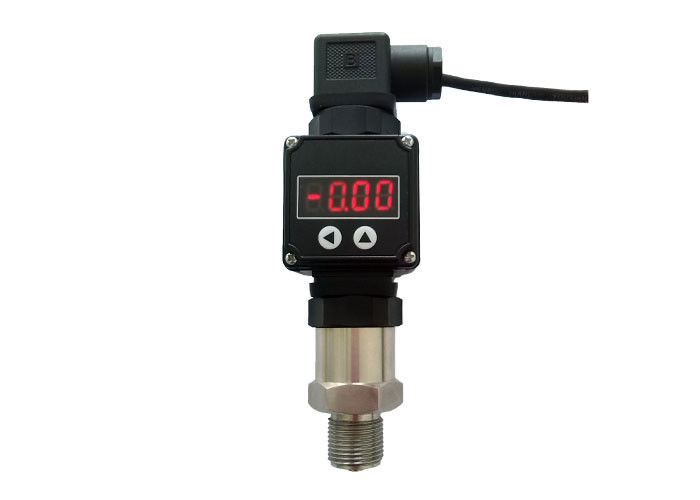

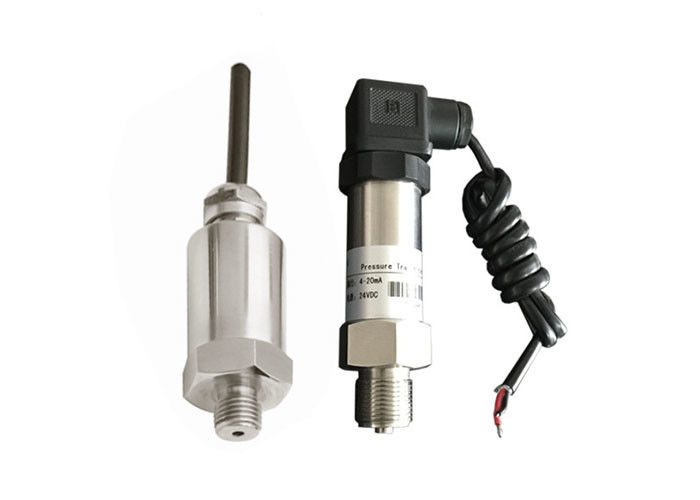

General Industrial Application Smart Pressure Transmitter For Hydraulic, Liquid, Water Level Measure
Description
WNK small size pressure transmitter is widely applied in gauge or absolute pressure measurement in fields of aerospace, and adopts imported high accuracy and high stability chips and excellent assembly technology, Applicable for irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.
Product Feature
Wide measuring range
Stainless steel structure,various pressure port
Laser marking,exquisite shape,beautiful and meticulous
Intelligent circuit board,no moving parts,stable and reliable
Efficient lightning protection and strong anti RFI&EMI protection
Explosion proof ExiaIICT6
Data Sheet
| Compact Pressure Transmittter with SS304 Housing | ||||
| Pressure range | 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa | |||
| Rangedown | 100:1 | |||
| Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature |
| -30~70℃ | -20~85℃ | -20~85℃ | -45~85℃ | |
| Accuracy | 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS | |||
| Output signals | 4~20mA, 0~5V, 1~5V, 0~10V | |||
| Long-term stability | 0.25%FS/year | |||
| Power supply | 24VDC | |||
| Protection class | IP65 | |||
| Electrical connection | DIN43650, M12, Direct lead, Small Hirschman | |||
| Mechanical connection | G1/2, M20*1.5,1/2NPT,1/4NPT,customization | |||
| Repeat | 0.05, 0.1%FS | |||
| Overload | 1.5~2 times | |||
| Housing material | SS304 | |||
