สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
WNK8010
วีดีโอ
วีดีโอ
Product Description

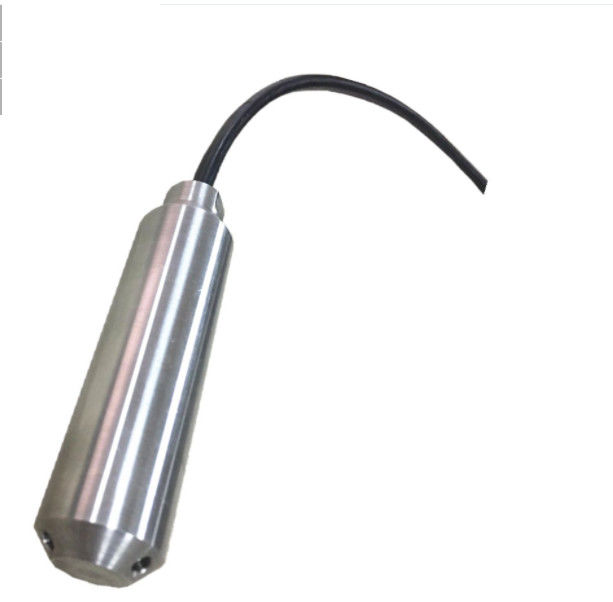

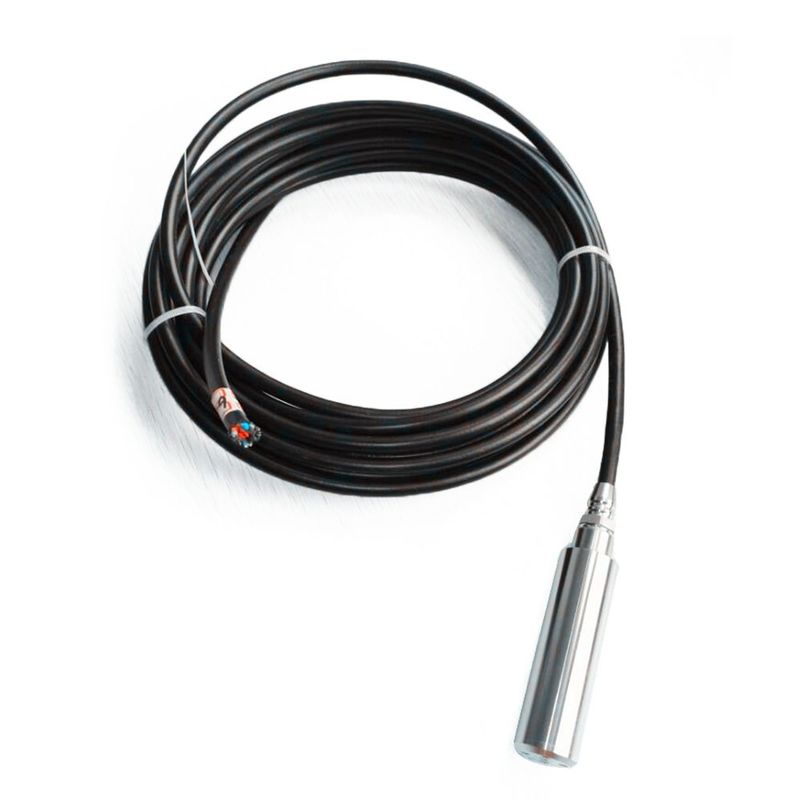

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.
2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.
Product Specification
| Output signals | |
| Output | 4-20mA, 0-10mA, 0-5V, 1-5V,Customization |
| Measured range | |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Parameters | |
| Applicable media | Liquid, Water |
| Accuracy | ±0.2% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
Product Dimension & Installation
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
