สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
CE
หมายเลขรุ่น:
WNK8010-TT
วีดีโอ
วีดีโอ
Product Description
- WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Product Specification
| Output signals | |
| Output | 4-20mA, 0-10mA, 0-5V, 1-5V,Customization |
| Measured range | |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Parameters | |
| Applicable media | Liquid, Water |
| Accuracy | ±1% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |

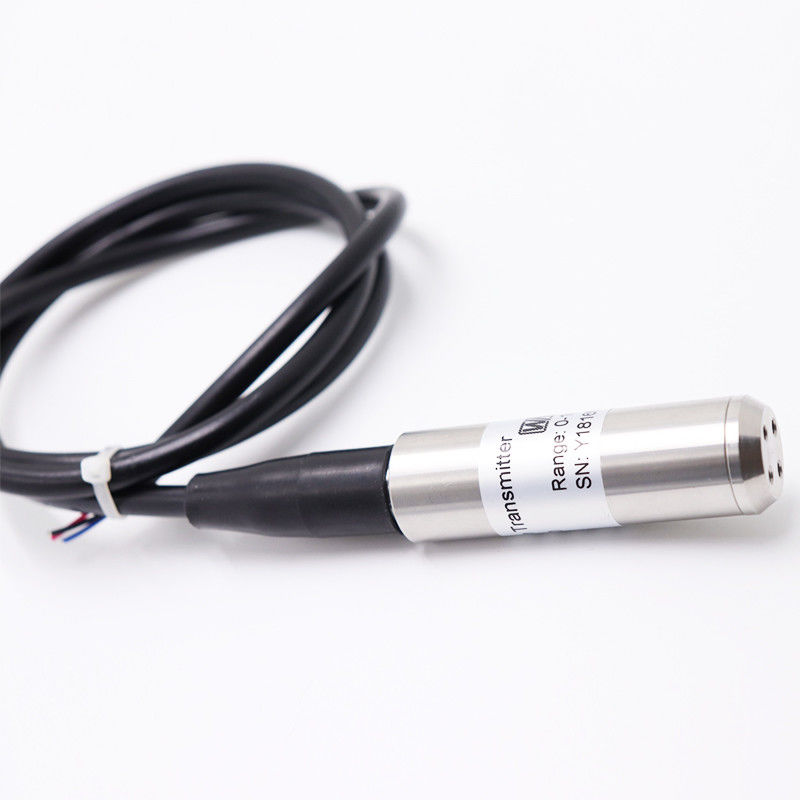

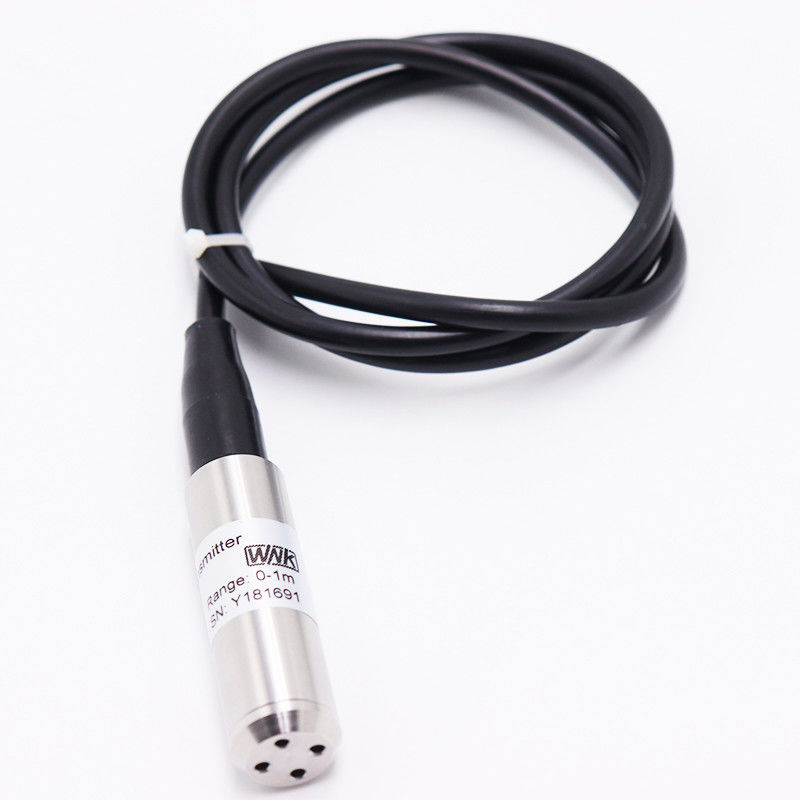

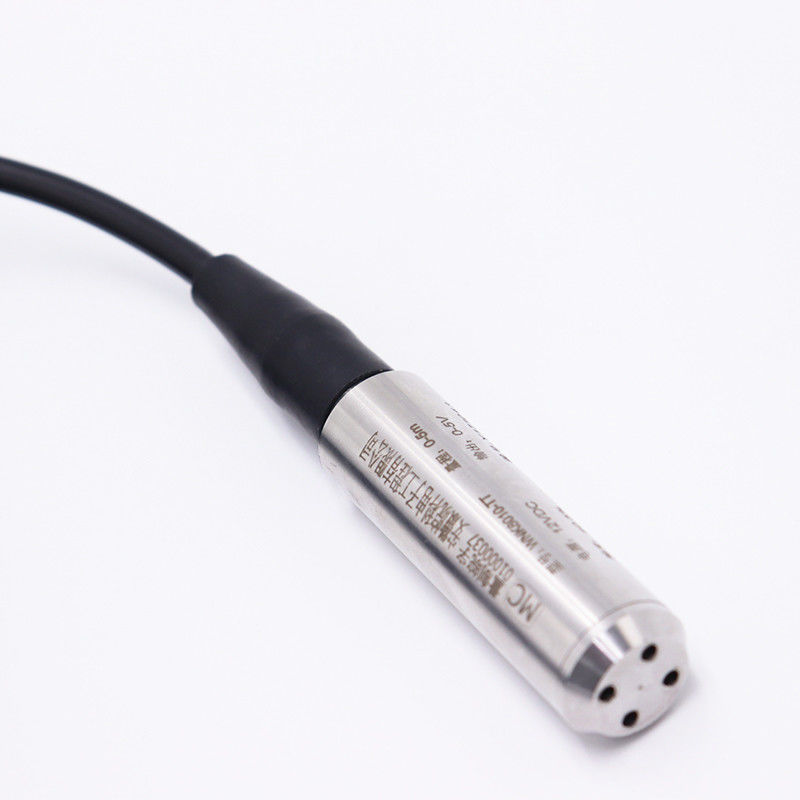

Product Pictures
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
