สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
CE&UL
หมายเลขรุ่น:
wnk80ma
วีดีโอ

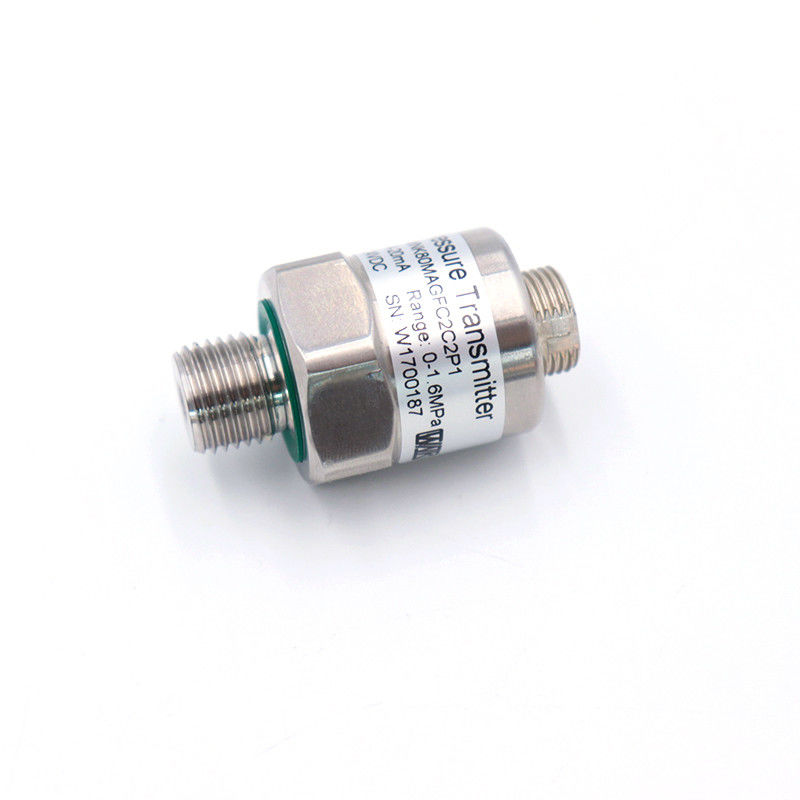

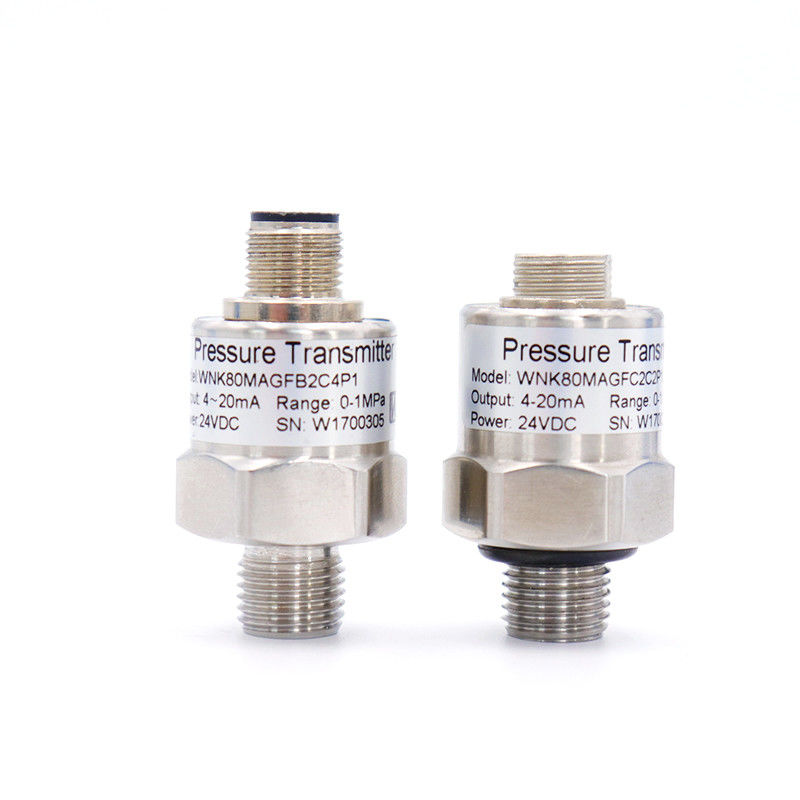

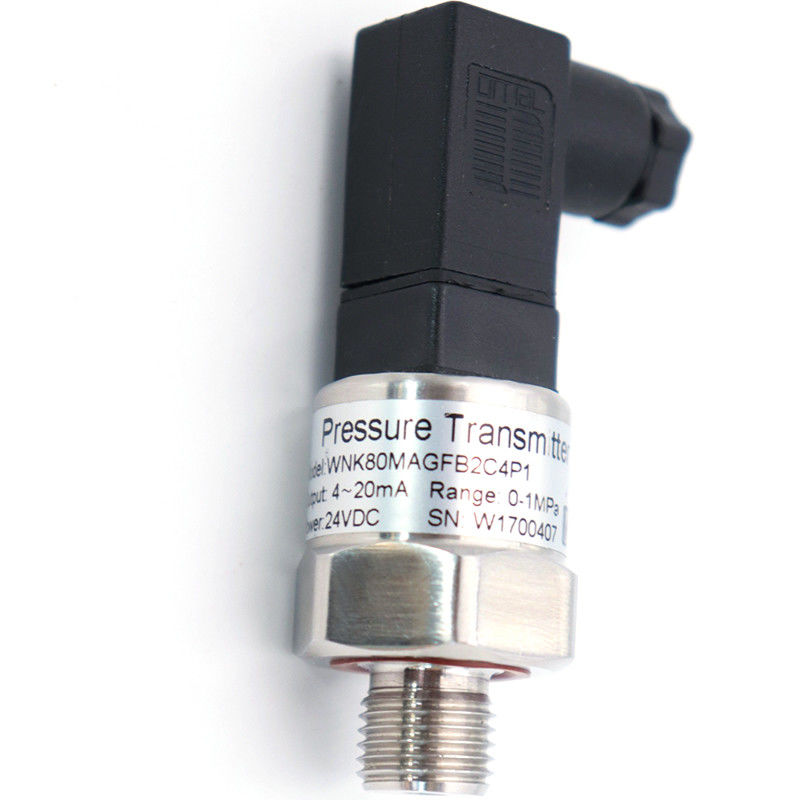

IP65 4-20MA Low Cost Pressure Sensor For Water I2C Pressure Sensor
| Applicable media | Liquid, gas and steam |
| Pressure range00 | 0-15Mpa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure and sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C |
| Power supply | 24VDC/12VDC/5VDC/3.3V |
| Accuracy(linearity,Hysteresis and Repeatability) | 0.5%FS-1%FS |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
| Electrical connection | Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection | G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Housing material | 304 stainless steel(316SS for inner core) |
| Protection | IP65 |
Product Display
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
