สถานที่กำเนิด:
มณฑลอานฮุยประเทศจีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
ISO9001:2015
หมายเลขรุ่น:
WNK-SPS
Product Description

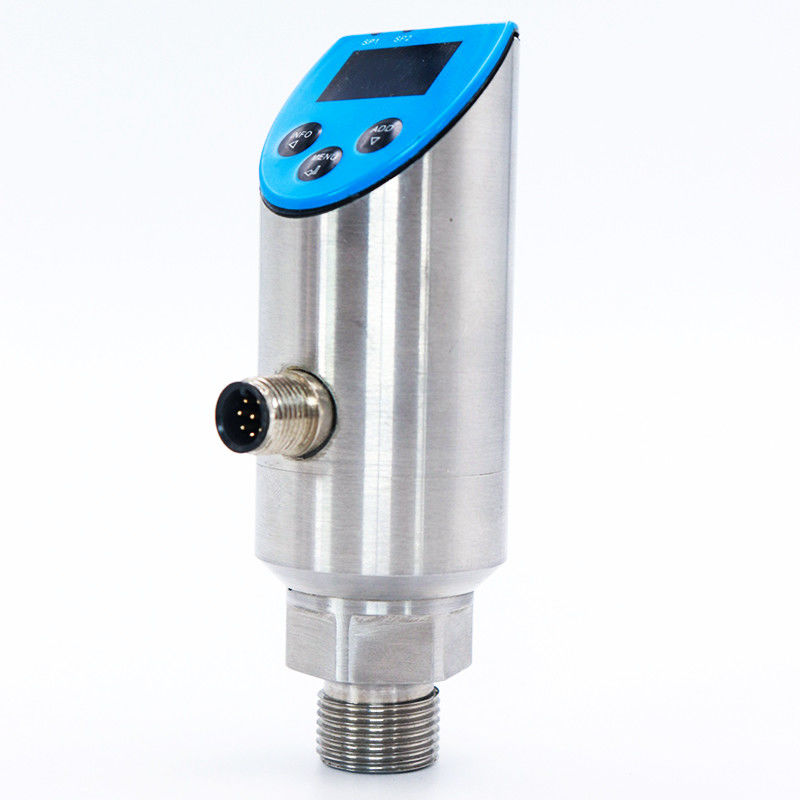

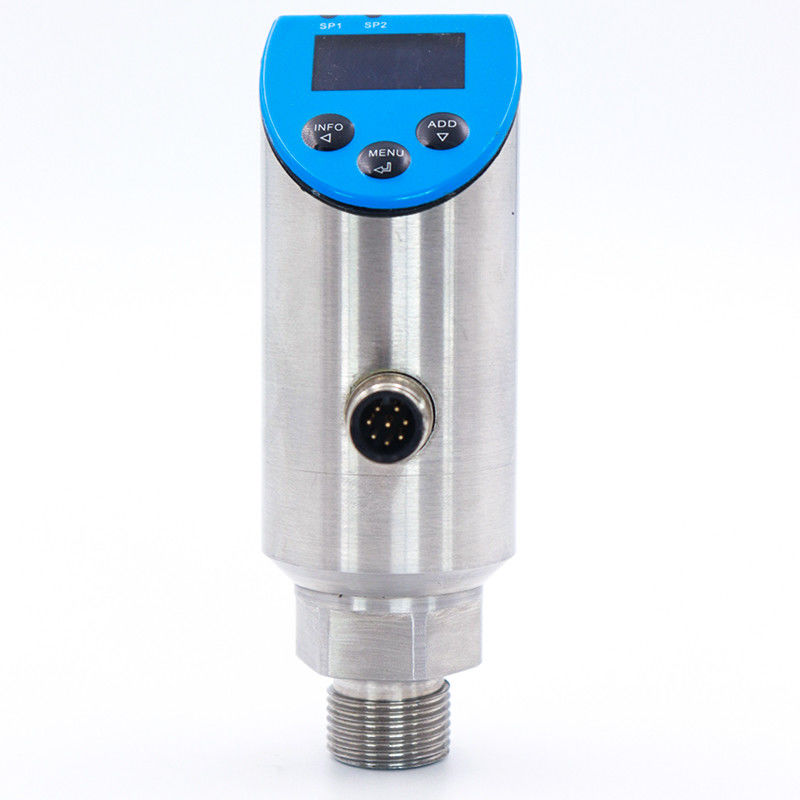

SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.
Applications
pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.
Features
- Programmable automatic control design
- OLED with back-light display
- Display 180°turnable
- Displaying pressure peak value and environment temperature
- Body 330°rotable
- Industrial touch-sensitive button
- Switch points settable
- PNP/NPN +4~20mA/0-5V output
- Support MODBUS
- Pressure, level and temperature switch
- OEM & Customizable
Product Spec
| Applicable Media | Liquid Gas Water |
| Output | 4-20ma, 0.5-4.5V, PNP, NPN |
| Housing material | 304sst/316sst |
| Accuracy | 0.5%FS |
| Protection class | IP65/ IP67 |
| Working temperature | -30-120C |
| Switch type | NO/NC |
| Display | OLED |
| Pressure Range | -1bar - 700bar |
| MOQ | 1 PC |
Product Show
Company Information
FAQ
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
