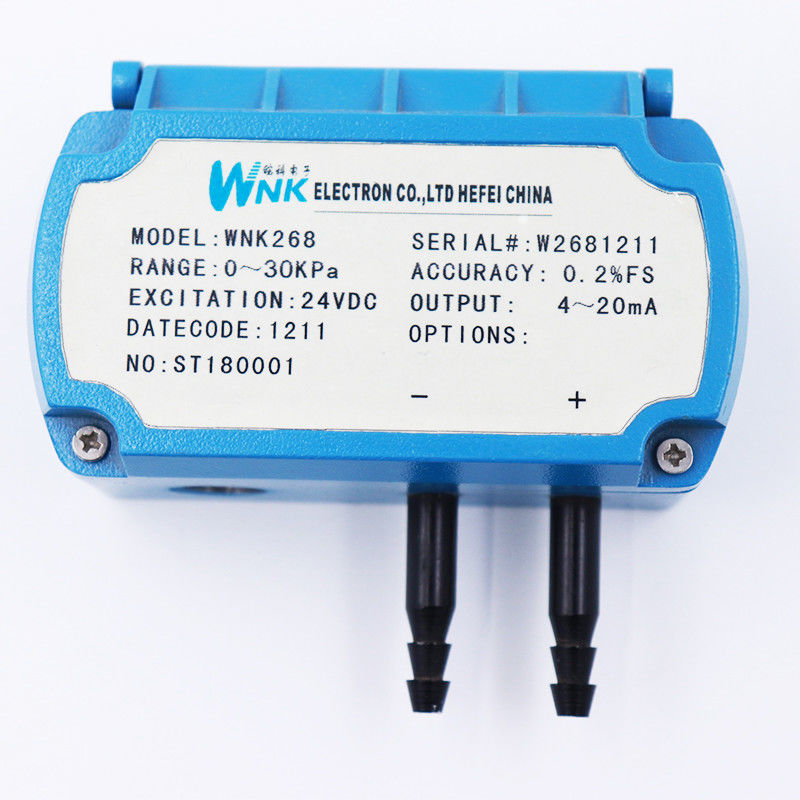

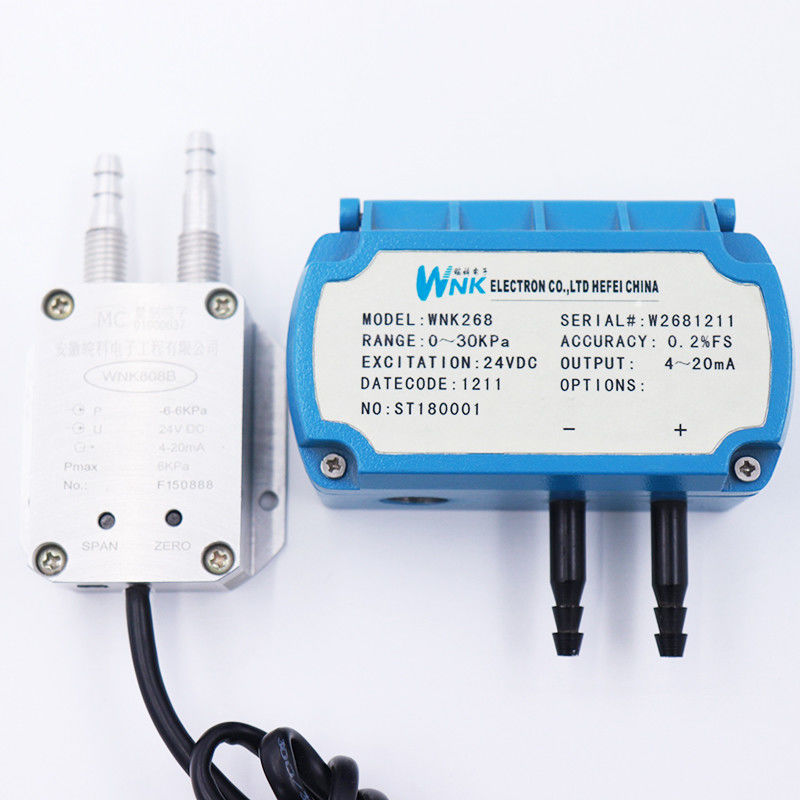

macro 30KPA Electronic Differential Pressure Flow Transmitter

macro 30KPA Electronic Differential Pressure Flow Transmitter

30KPA electronic differential pressure transmitter

30KPA differential pressure flow transmitter

macro differential pressure level sensor

สถานที่กำเนิด:

เหอเฝย, จีน

ชื่อแบรนด์:

WNK

ได้รับการรับรอง:

CE

หมายเลขรุ่น:

WNK268/WNK808B

ติดต่อเรา
ขอทุน
Product Details
หมายเลขรุ่น:
WNK268/WNK808B
ประเภทความดัน:
ความดันมาตรวัดความดันแตกต่างกัน
สื่อ:
อากาศแก๊ส
สัญญาณเอาท์พุต:
4- 20mA
ช่วงความดัน:
-100Kpa ~ 60MPa
ความแม่นยำ:
0.2% , 0.5% เอฟเอส
อุณหภูมิในการทำงาน:
-40~85 ℃
อุณหภูมิในการทำงาน:
-10~70℃
น้ำหนักสุทธิ:
347.5ก
สถานที่กำเนิด:
จีน
เน้น:

30KPA electronic differential pressure transmitter

,

30KPA differential pressure flow transmitter

,

macro differential pressure level sensor

Payment & Shipping Terms
จำนวนสั่งซื้อขั้นต่ำ
1 ชิ้น
ราคา
negotiable
รายละเอียดการบรรจุ
กล่อง
เวลาการส่งมอบ
5-8 วันทำการ
เงื่อนไขการชำระเงิน
T/T, Western Union, Paypal, บัตรเครดิต
สามารถในการผลิต
2,000 ชิ้นต่อสัปดาห์
RELATED PRODUCTS
ราคาดี G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam ออนไลน์ วีดีโอ

G1/4 Packard Capacitive Mini Pressure Transmitter For Liquid Gas Steam

หา ราคา ที่ ดี ที่สุด
ราคาดี Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT ออนไลน์ วีดีโอ

Brass Material High Accuracy Pressure Transmitter Liquid Level Transmitter 1/4 NPT

หา ราคา ที่ ดี ที่สุด
ราคาดี Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE ออนไลน์ วีดีโอ

Water Oil Air Smart Pressure Transmitter 4.75 - 5.25V DC Power Supply CE

หา ราคา ที่ ดี ที่สุด
ราคาดี WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor ออนไลน์ วีดีโอ

WNK83MA Customized Cable Outlet 0.5 - 4.5V DC Output Smart Pressure Sensor

หา ราคา ที่ ดี ที่สุด
ติดต่อเรา
ติดต่อเลย
Product Description

4-20mA Differential Pressure Transmitters For Gas Differential Pressure Measurement

Product Description



Intelligent Macro Differential Pressure Transmitter
Applicable media
Gas, Steam
Pressure Measurement
Gauge pressure, Differential pressure
Pressure range
-10Pa~100Pa, -100kPa~+100kPa
Accuracy
0.2%, 0.5%
Stability
0.8%F.S./Year
Maximum static pressure
70 KPa
Max overload
250% of sensor range
Output signals
4~20mA
Housing material
Aluminum14
Induct Pressure Connection:
M 8x1 female or Ø 8 dowel connection

Power Supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Compensation temperature
-10~70℃
Working temperature
-10~70℃

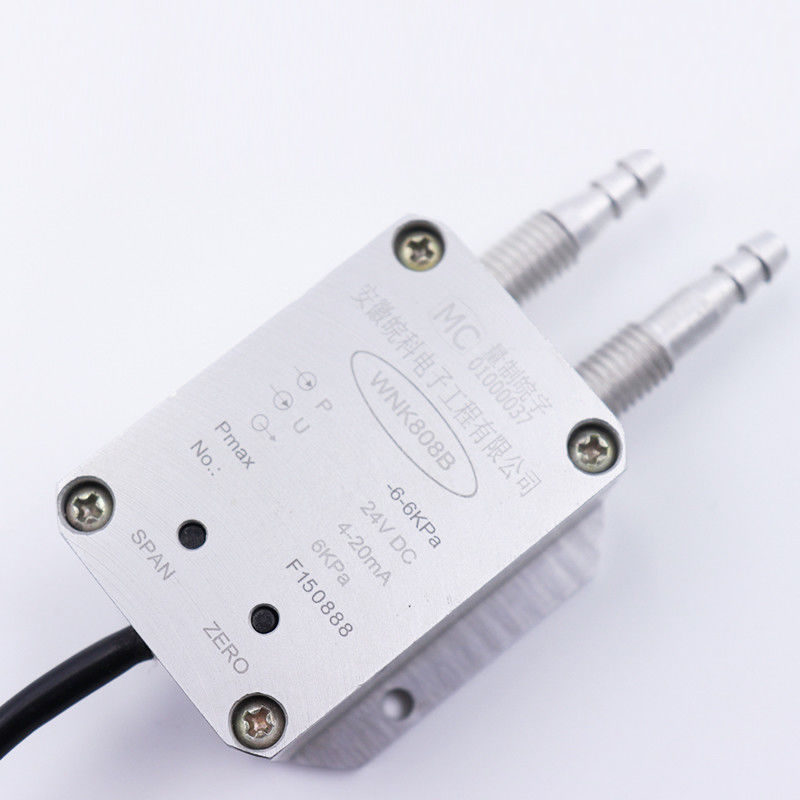

WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.



Application


It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.



Product Show

macro 30KPA Electronic Differential Pressure Flow Transmitter 0macro 30KPA Electronic Differential Pressure Flow Transmitter 1macro 30KPA Electronic Differential Pressure Flow Transmitter 2macro 30KPA Electronic Differential Pressure Flow Transmitter 3

macro 30KPA Electronic Differential Pressure Flow Transmitter 4macro 30KPA Electronic Differential Pressure Flow Transmitter 5

macro 30KPA Electronic Differential Pressure Flow Transmitter 6
macro 30KPA Electronic Differential Pressure Flow Transmitter 7






Company Information

macro 30KPA Electronic Differential Pressure Flow Transmitter 8



Exhibition

macro 30KPA Electronic Differential Pressure Flow Transmitter 9





Certification

macro 30KPA Electronic Differential Pressure Flow Transmitter 10




FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
