สถานที่กำเนิด:
มณฑลอานฮุยประเทศจีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
CE, SGS, ISO9001
หมายเลขรุ่น:
wnk80ma
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-20kPa~50MPa |

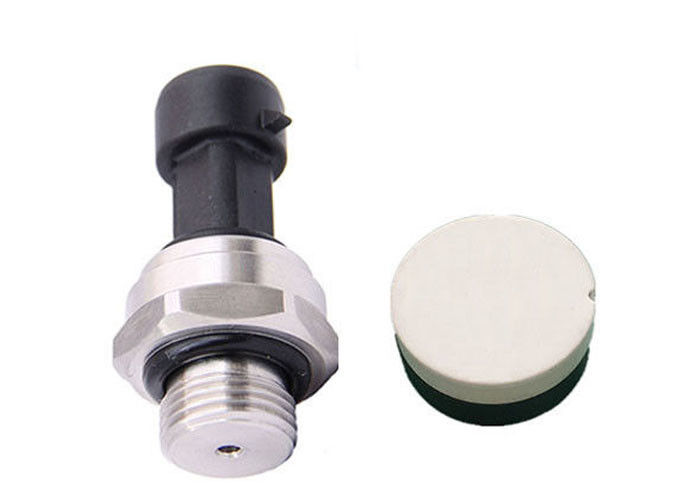

| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, absolute pressure and sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C |
| Power supply | 24VDC/12VDC/5VDC/3.3V |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
| Electrical connection | Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection | G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Housing material | 304 stainless steel(316SS for inner core) |
| Protection | IP65 |
Electrical connection:
Application:
WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
