สถานที่กำเนิด:
เหอเฝย, จีน
ชื่อแบรนด์:
WNK
ได้รับการรับรอง:
CE, SGS, ISO9001
หมายเลขรุ่น:
WNK80MA-P
วีดีโอ

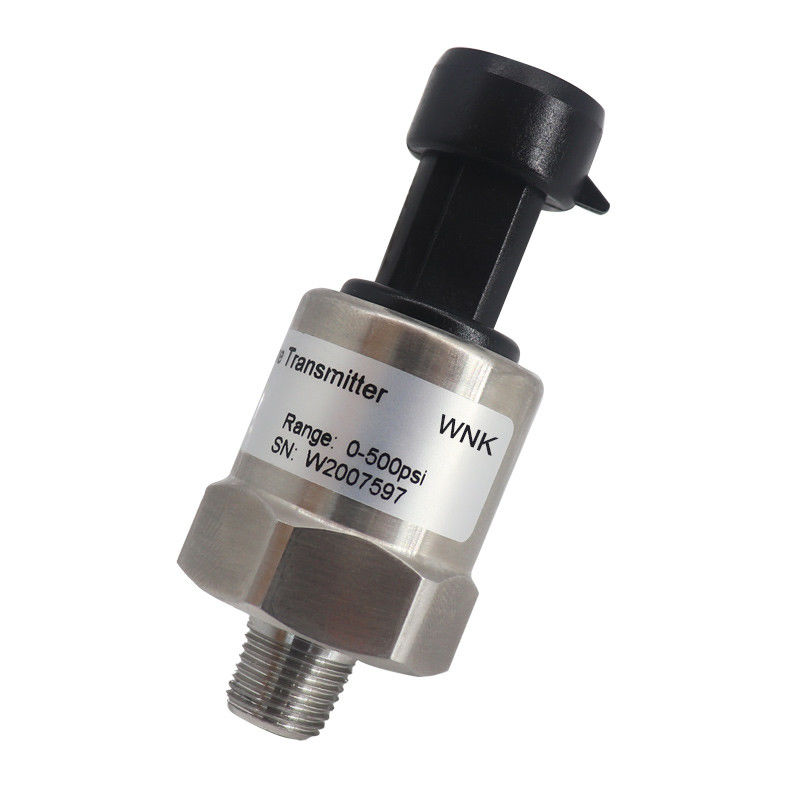

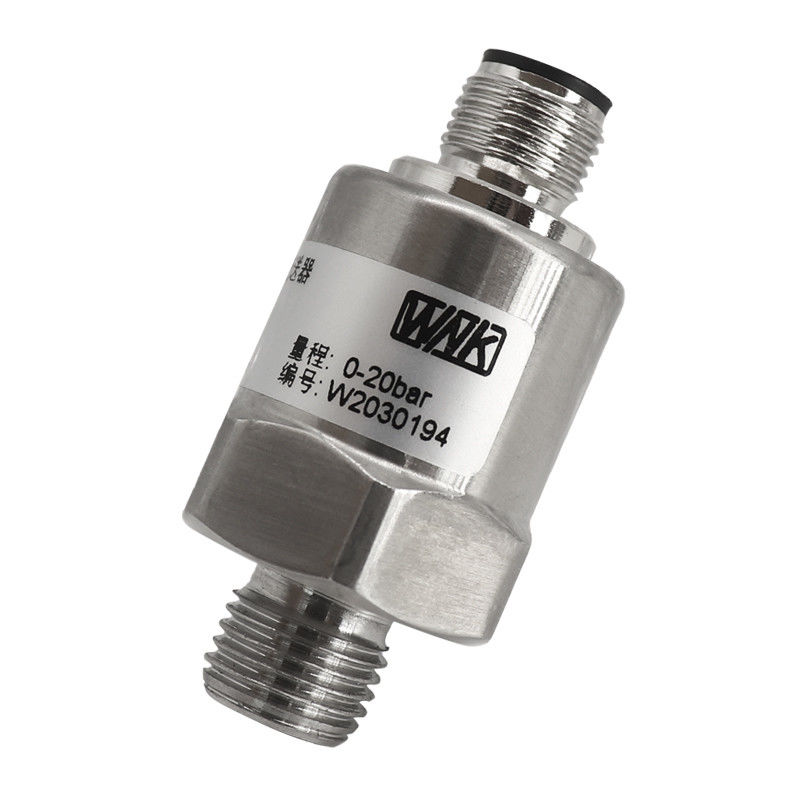

IP65 304SST Oil Gas Pressure Sensor For Air Compressor HVAC Water Pump
Quick Information
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
WNK80MA integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit with precise temperature characteristic compensation, it can be used reliably and stably
Specifications
|
Applicable media
|
Liquid, Gas
|
|
Pressure range
|
0-20kPa~350bar
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Sealing pressure
|
|
Output
|
4-20mA/0.5-4.5V/1 -5V/0-5V
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
0.5%F.S.(Typical)
|
|
Power supply
|
24VDC/12VDC/5VDC
|
|
Compensation temperature
|
-20~85ºC
|
|
Ambient temperature
|
-40~125ºC
|
|
Working temperature
|
-40~125ºC
|
|
Temperature drift(zero)
|
±0.15% F.S. (-20~85ºC)
|
|
Temperature drift(full range)
|
±0.15% F.S. (-20~85ºC)
|
|
power(electrical) connect
|
Parker joint, customization
|
|
Mechanical connection
|
G1/4, 1/8NPT,M12*1.5, customize
|
|
Housing material
|
304 stainless steel(inner core is 316 stainless steel)
|
|
Protection
|
IP65
|
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
